SAB was the first to introduce the Goblin 420 with a Direct Drive motor, opening up new possibilities in this class.
Later, to maximize the power-to-weight ratio, SAB developed belt-driven version: lighter, more powerful and even more extreme.

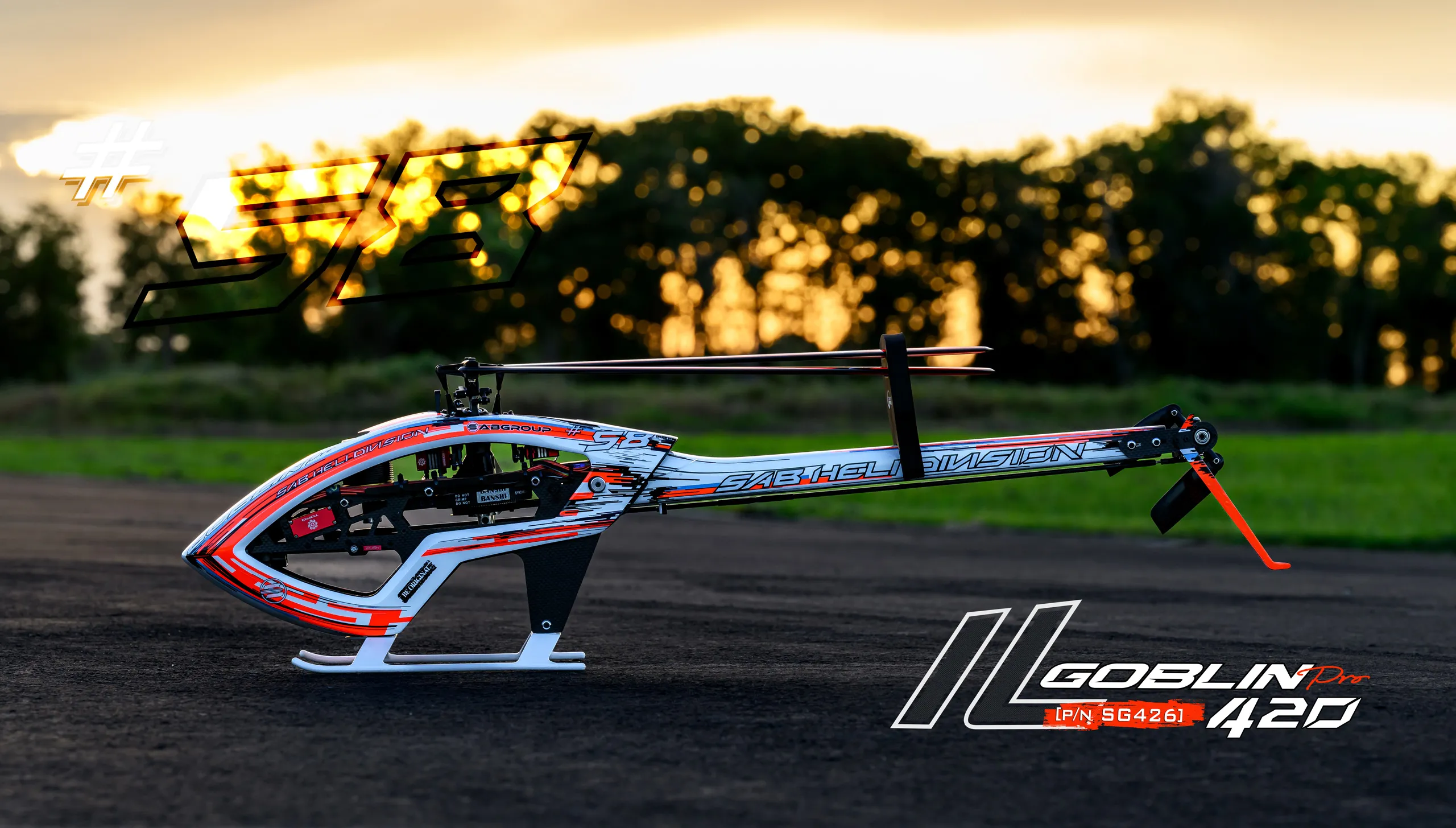

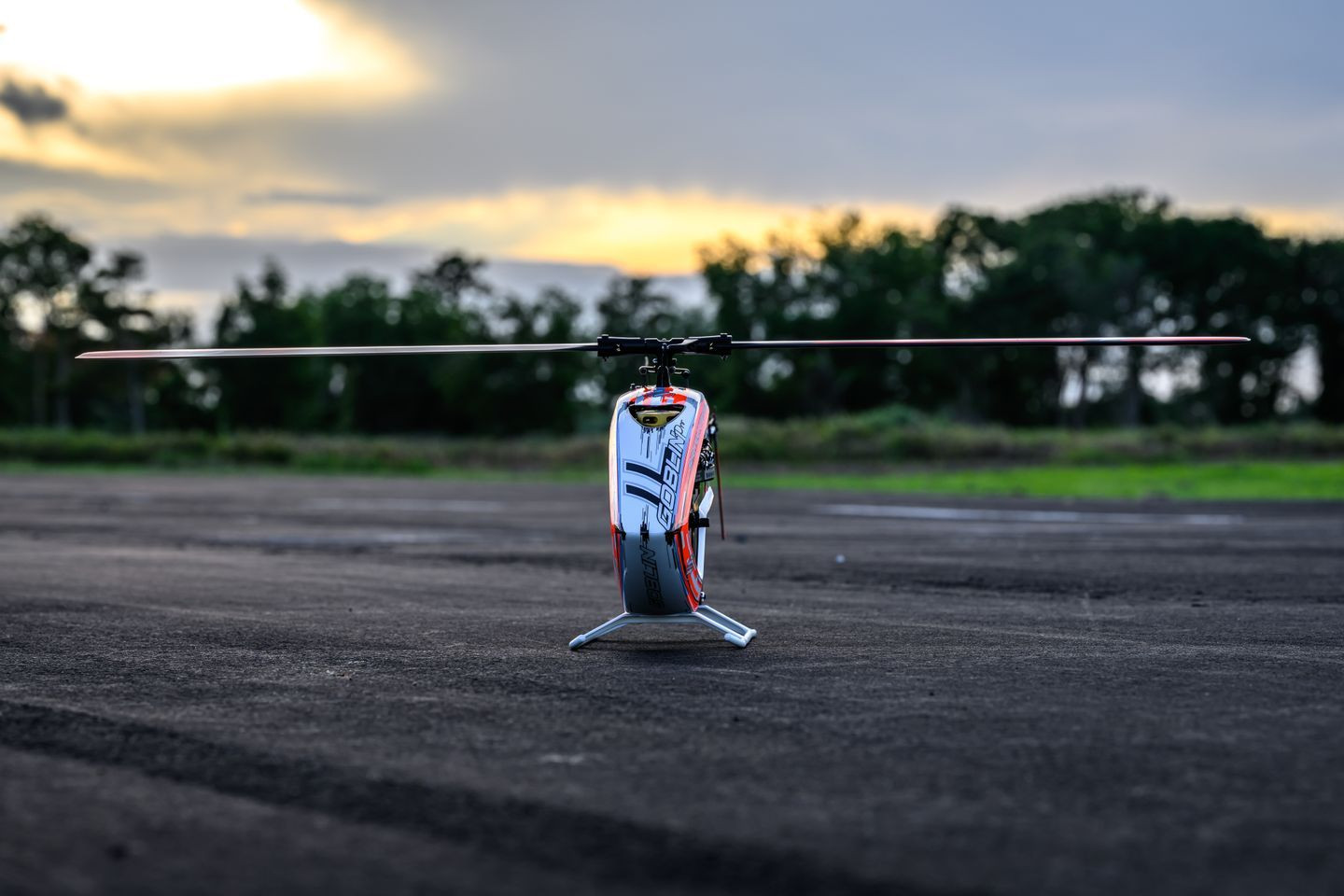

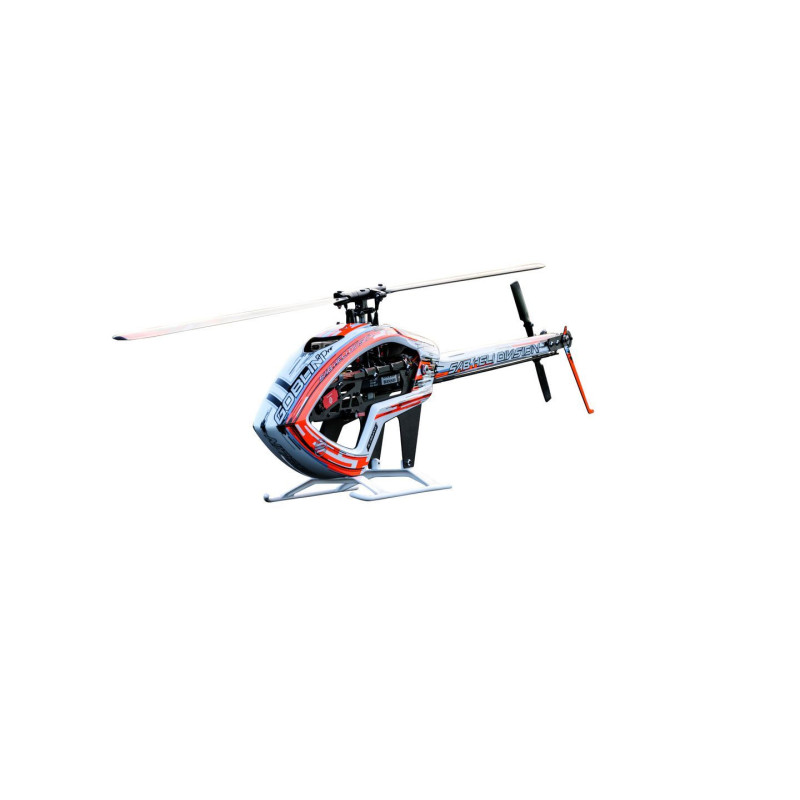

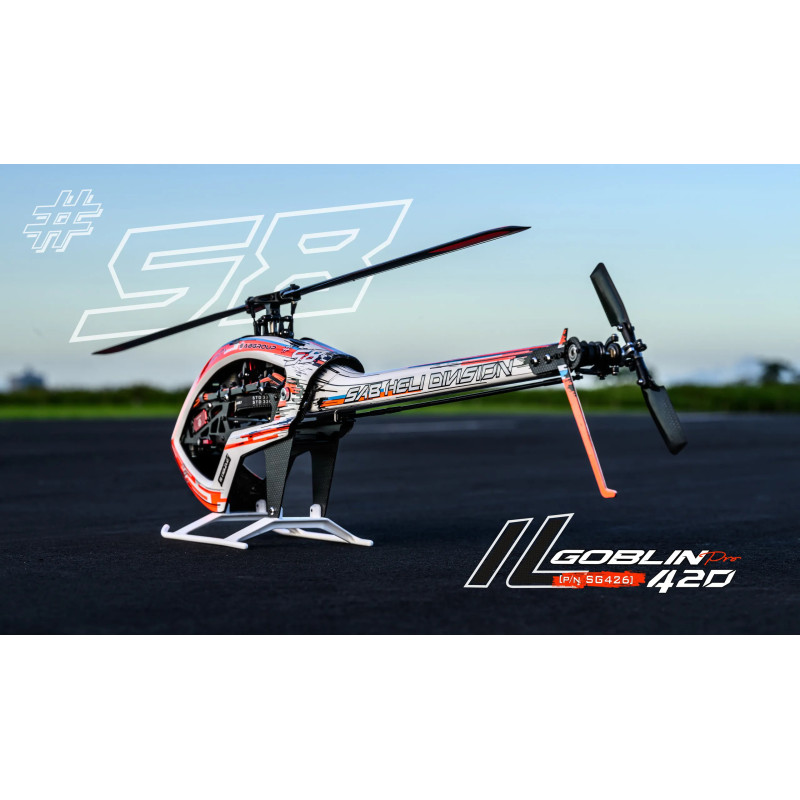

Now, SAB raises the bar once again by combining technology and design. Inspired by the iconic lines of the best-selling SG760, the new ILGoblin 420 brings the same stunning appeal to the 420 class.

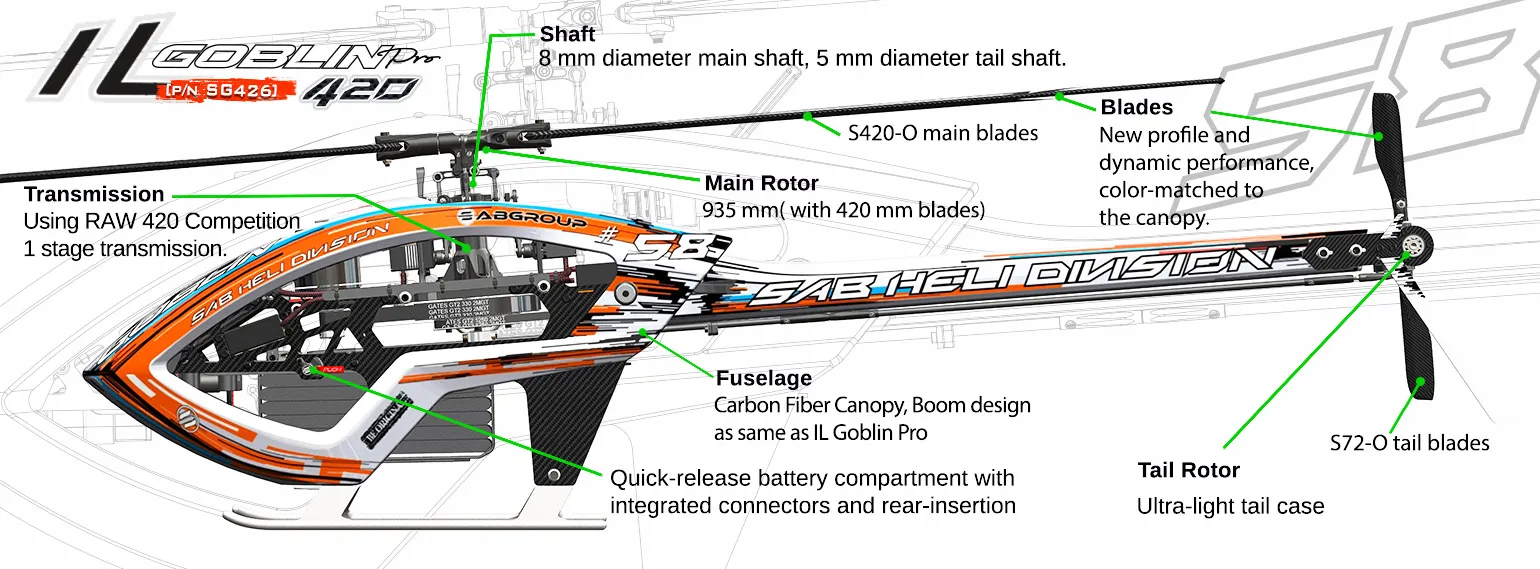

Main rotor diameter : 935mm (with 420mm blades)
Main blade length : 380 to 420mm

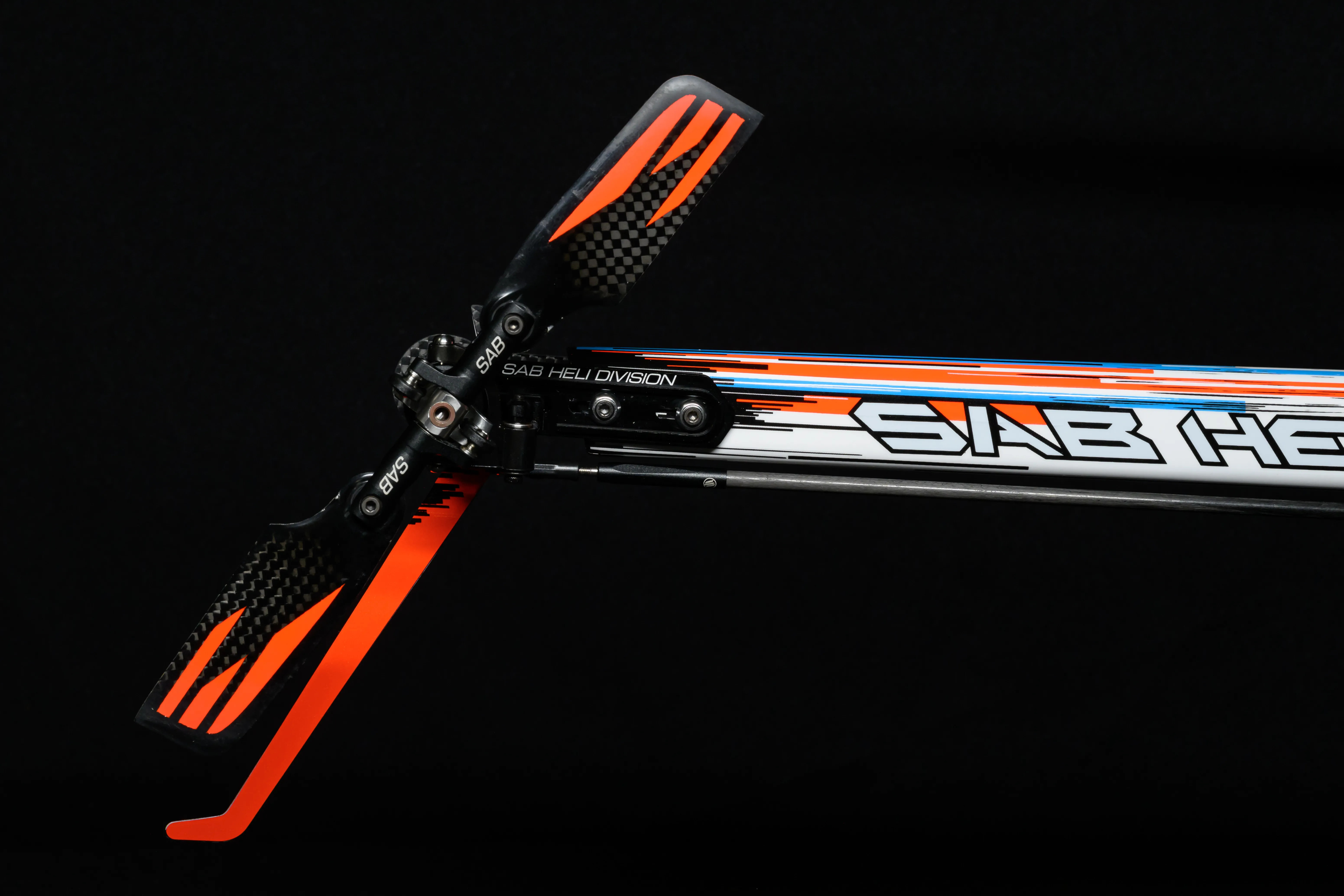

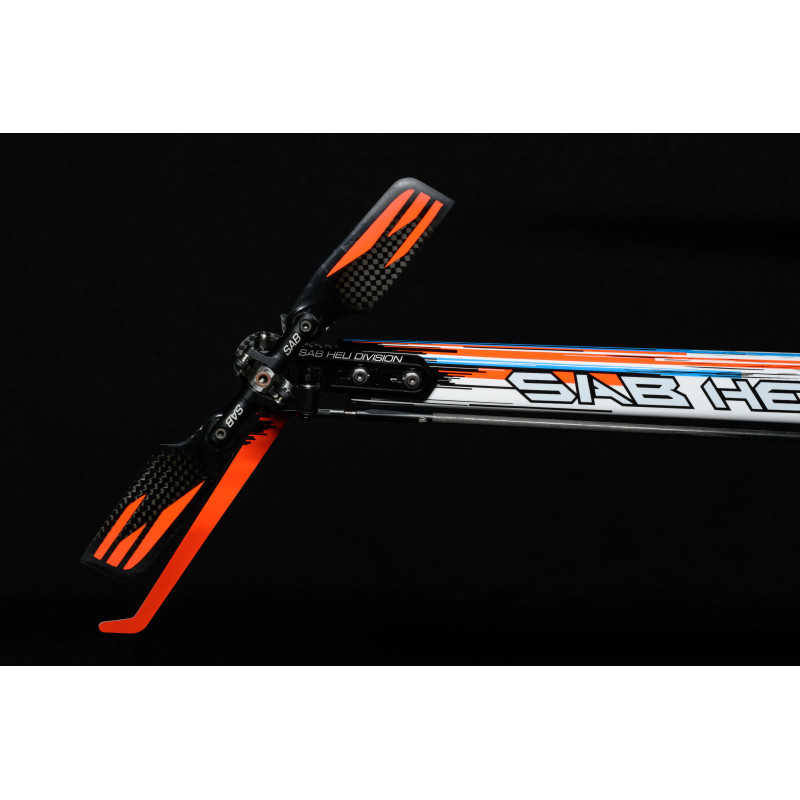

Tail rotor diameter : 190mm (with 70mm tail blades)
Tail blade length : 60 to 70mm
Micro size cyclic servos : (23mm)
Mini size tail servo : (35mm)
Maximum battery size : 140x40x50mm (max)
Recommended battery : 6s 2200/2700 mAh
Recommended motor : 3020 – 3215 – 3220
Recommended KV motor : 900-1000 KV
Recommended battery weight : 350-420 grams
Recommended ESC : 60 (70-80A is required only for hard 3D flight with temperatures above 30°C)
Tail rotor ratio : 4:1

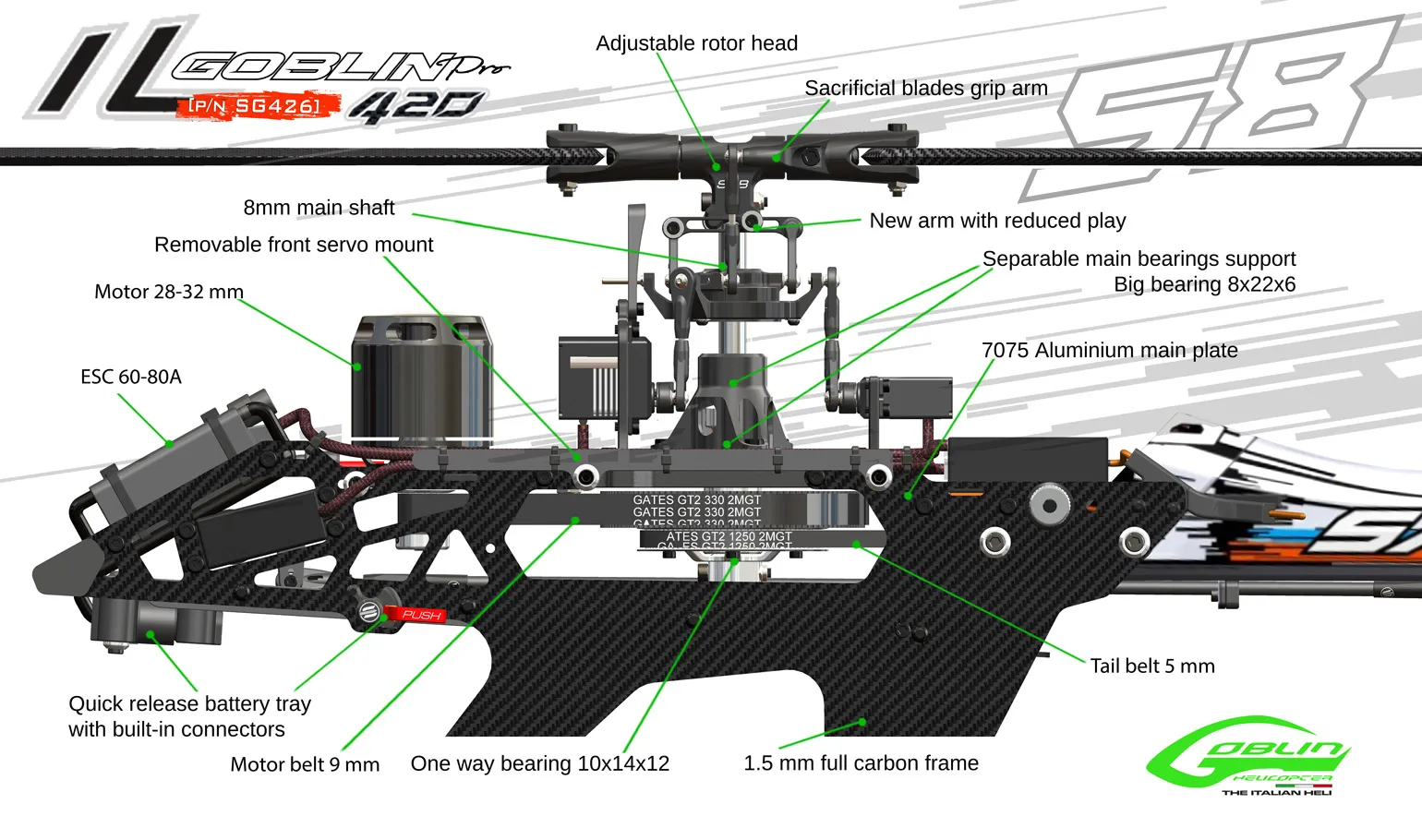

8mm main shaft
5mm tail shaft
