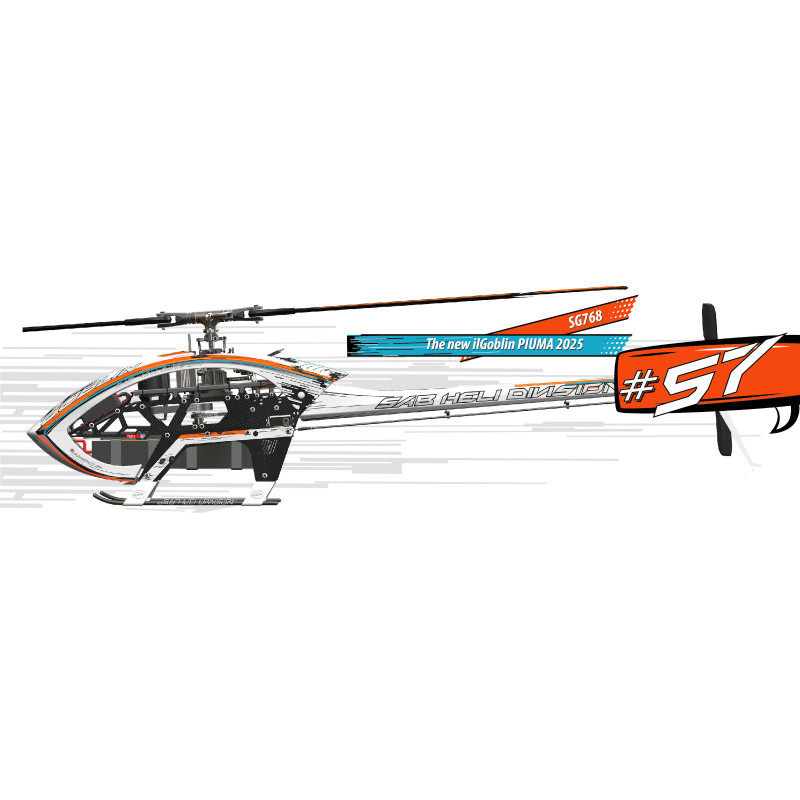

The new ILGoblin PIUMA 2025 is the result of ingenious design, guaranteeing the rigidity and reliability of 700-class models, while prioritizing lightweight construction and ease of assembly.
Featuring a 12mm main shaft, a 10mm rotor shaft, and the same main pinion as the ILGoblin PRO, the PIUMA stands out for its robustness and light weight. Its modular design allows for easy conversion to a NITRO version by simply adding a few components, enabling pilots to use both electric and internal combustion engines.
This model boasts original and innovative graphics and offers the option of installing a standard aluminum tail boom, further enhancing its versatility.
Specifications
Helicopter weight: 3346g (without blades, 4525 motor, 180A ESC, servos, and stabilization system)
Main blade length : 650-715mm
Tail blade length : 105-115mm
Cyclic servo size: Standard (40mm)
Tail servo size : Standard (40mm)
Main rotor gear ratio : 11.0-100.0:1 (with 21T pinion = 10.1:1)
Tail rotor gear ratio : 5.1-4.9:1 (with 26T pinion = 4.9:1)
Battery : Compatible with 6S to 12S LiPo batteries
Motors : 480-560 / 950-1100 KV
Battery compartment size : 50 x 60 x 300 mm
